Exam 12: Rotation of a Rigid Body

Show Answer

Share

---

All types

Filters

Study FlashcardsPractice ExamLearn

Question 61

Multiple Choice

Review LaterAdd Note

Review Later

A child is trying to stack two uniform wooden blocks, 12 cm in length, so they will protrude as much as possible over the edge of a table, without tipping over, as shown in the figure. What is the maximum possible overhang distance d?

A) 5 cm
B) 6 cm
C) 7 cm
D) 8 cm
E) 9 cm

Correct Answer

verified

Show Answer

Question 62

Short Answer

Review LaterAdd Note

Review Later

If the magnitude of the cross product of two vectors is one-half the dot product of the same vectors, what is the angle between the two vectors?

Correct Answer

verified

Show Answer

Question 63

Multiple Choice

Review LaterAdd Note

In the figure, a mass of 31.77 kg is attached to a light string that is wrapped around a cylindrical spool of radius 10.0 cm and moment of inertia 4.00 kg · m². The spool is suspended from the ceiling, and the mass is then released from rest a distance 5.70 m above the floor. How long does it take to reach the floor?

In the figure, two blocks, of masses 2.00 kg and 3.00 kg, are connected by a light string that passes over a frictionless pulley of moment of inertia 0.00400 kg · m² and radius 5.00 cm. The coefficient of friction for the tabletop is 0.300. The blocks are released from rest. Using energy methods, find the speed of the upper block just as it has moved 0.600 m.

In the figure, a very light rope is wrapped around a wheel of radius R = 2.0 meters and does not slip. The wheel is mounted with frictionless bearings on an axle through its center. A block of mass 14 kg is suspended from the end of the rope. When the system is released from rest it is observed that the block descends 10 meters in 2.0 seconds. What is the moment of inertia of the wheel?

In the figure, a 10.0-m long bar is attached by a frictionless hinge to a wall and held horizontal by a rope that makes an angle θ of 53° with the bar. The bar is uniform and weighs 39.9 N. How far from the hinge should a 10.0-kg mass be suspended for the tension T in the rope to be 125 N?

A string is wrapped around a pulley with a radius of 2.0 cm and no appreciable friction in its axle. The pulley is initially not turning. A constant force of 50 N is applied to the string, which does not slip, causing the pulley to rotate and the string to unwind. If the string unwinds 1.2 m in 4.9 s, what is the moment of inertia of the pulley?

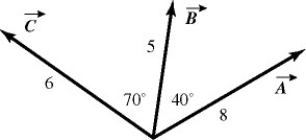

For the vectors shown in the figure, find the magnitude and direction of the vector product × , assuming that the quantities shown are accurate to two significant figures.

A 1.15-kg grinding wheel 22.0 cm in diameter is spinning counterclockwise at a rate of 20.0 revolutions per second. When the power to the grinder is turned off, the grinding wheel slows with constant angular acceleration and takes 80.0 s to come to a rest. (a) What was the angular acceleration (in rad/s²) of the grinding wheel as it came to rest if we take a counterclockwise rotation as positive? (b) How many revolutions did the wheel make during the time it was coming to rest?

A wheel has a radius of 0.40 m and is mounted on frictionless bearings. A block is suspended from a rope that is wound on the wheel and attached to it (see figure) . The wheel is released from rest and the block descends 1.5 m in 2.00 s without any slipping of the rope. The tension in the rope during the descent of the block is 20 N. What is the moment of inertia of the wheel?

If = -2 - 6 + 2 and = -2 -2 - 3 , which of the following numbers is closest to the magnitude of × ?

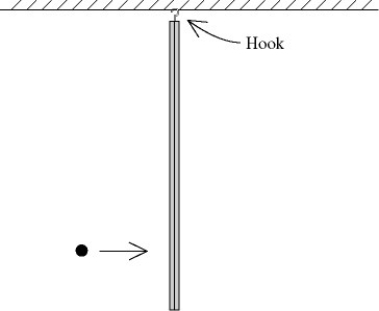

A metal bar is hanging from a hook in the ceiling when it is suddenly struck by a ball that is moving horizontally (see figure) . The ball is covered with glue, so it sticks to the bar. During this collision

A uniform solid 5.25-kg cylinder is released from rest and rolls without slipping down an inclined plane inclined at 18° to the horizontal. How fast is it moving after it has rolled 2.2 m down the plane?

A figure skater rotating at 5.00 rad/s with arms extended has a moment of inertia of 2.25 kg ∙ m². If the arms are pulled in so the moment of inertia decreases to 1.80 kg ∙ m², what is the final angular speed?

For the vectors shown in the figure, find the magnitude and direction of × , assuming that the quantities shown are accurate to two significant figures.

A uniform disk, a uniform hoop, and a uniform solid sphere are released at the same time at the top of an inclined ramp. They all roll without slipping. In what order do they reach the bottom of the ramp?
