Exam 35: The Nature of Light and the Principles of Ray Optics

Show Answer

Share

---

All types

Filters

Study FlashcardsPractice ExamLearn

Question 21

Short Answer

Review LaterAdd Note

Review Later

A layer of kerosene (n = 1.45) is floating on water (n = 1.33). For what angles of incidence at the kerosene-water interface will light be totally internally reflected within the kerosene?

Correct Answer

verified

Show Answer

Question 22

Multiple Choice

Review LaterAdd Note

Review Later

Two mirrors are at right angles to one another. A light ray is incident on the first at an angle of 30° with respect to the normal to the surface. What is the angle of reflection from the second surface?

A) 30°
B) 60°
C) 45°
D) 53°
E) 75°

Correct Answer

verified

Show Answer

Question 23

Multiple Choice

Review LaterAdd Note

When light scatters from a rough surface, the law

A layer of water (n = 1.333) floats on carbon tetrachloride (n = 1.461) contained in an aquarium. To the nearest degree, what is the critical angle at the interface between the two liquids?

A layer of ethyl alcohol (n = 1.361) is on top of water (n = 1.333) . To the nearest degree, at what angle relative to the normal to the interface of the two liquids is light totally reflected?

An aquarium contains a 5-cm layer of water (n = 1.33) floating on top of carbon tetrachloride (n = 1.461) . If the angle of incidence into the water from the air is 30°, what is the angle of refraction into the carbon tetrachloride?

Light behaves like

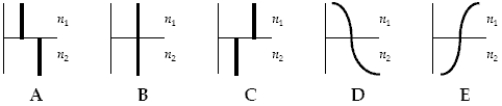

The wave front shown at the left for light in air reaches the plane boundary between air and two transparent mediums with n₁ = 1.5 and n₂ = 3.00 respectively. Which diagram below correctly illustrates the wave front after it has entered the two mediums at the right?

The angle between two plane mirrors that meet at one edge is 45°. The change in direction of a ray that strikes the first mirror at a 60° angle of incidence when that ray reflects from the second mirror is

Two flat rectangular mirrors are set edge to edge and placed perpendicular to a flat nonreflecting surface. The edges of the two mirrors meet at a 30° angle. A light ray that approaches mirror 1 is parallel to mirror 2. The angle of reflection of that ray from mirror 1 is

Two flat rectangular mirrors are set edge to edge and placed perpendicular to a flat nonreflecting surface. The edges of the two mirrors meet at a 30° angle. A light ray that enters parallel to mirror 2 reflects from mirror 1 and then from mirror 2. The angle of reflection of that ray from mirror 2 is

The index of refraction for red light in water is 1.331 and for blue light is 1.340. If a ray of white light enters the water at an angle of incidence of 83.00°, what are the underwater angles of refraction for the blue and red components of the light?

An experiment to measure the speed of light uses an apparatus similar to Fizeau's. The distance between the light source and the mirror is 10 m, and the wheel has 800 notches. If the wheel rotates at 9000 rev/s when the light from the source is extinguished, what is the experimental value for c (in m/s) ?

A light ray strikes a hexagonal ice crystal floating in the air perpendicular to one face, as shown below. The hexagonal faces of the crystal are perpendicular to the plane of the page. All the rays shown are in the plane of the page, and n_ice = 1.30. Which outgoing ray is correct when the incoming ray strikes the crystal face on the left head on?

The first successful measurement of the speed of light was made by

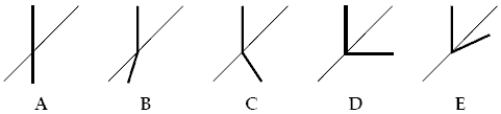

The wave front shown at the left for light in air reaches the plane surface (shown by a slanted line) that bounds a medium with n = 1.50. Which diagram below correctly shows the wave front while entering the medium at the right?

A diver shines an underwater searchlight at the surface of a pond (n = 1.33) . At what angle (relative to the surface) will the light be totally reflected?
